SKU : 147712526015441
$1,285.90
Your orders are shipped seamlessly between countries
You have the right to return your orders within 30 days.
Your payments are secure with our private security network.
|
Frequency Range
|
Uplink
|
Downlink
|
||||||||
|
GSM 900MHz + DCS 1800MHz +WCDMA 2100MHz
(GSM + Band 3 + Band 1) |
890-915/1710-1785/1920-1980MHz
|
935-960/1805-1880/2110-2170MHz
|
||||||||
|
Max. Gain
|
80dB±2dB
|
85dB±2dB
|
||||||||
|
Max. Output Power
|
27dBm±2dBm
|
30dBm±2dBm
|
||||||||
|
Band width
|
Wide Band(Selective Band Available for OEM)
|
|||||||||
|

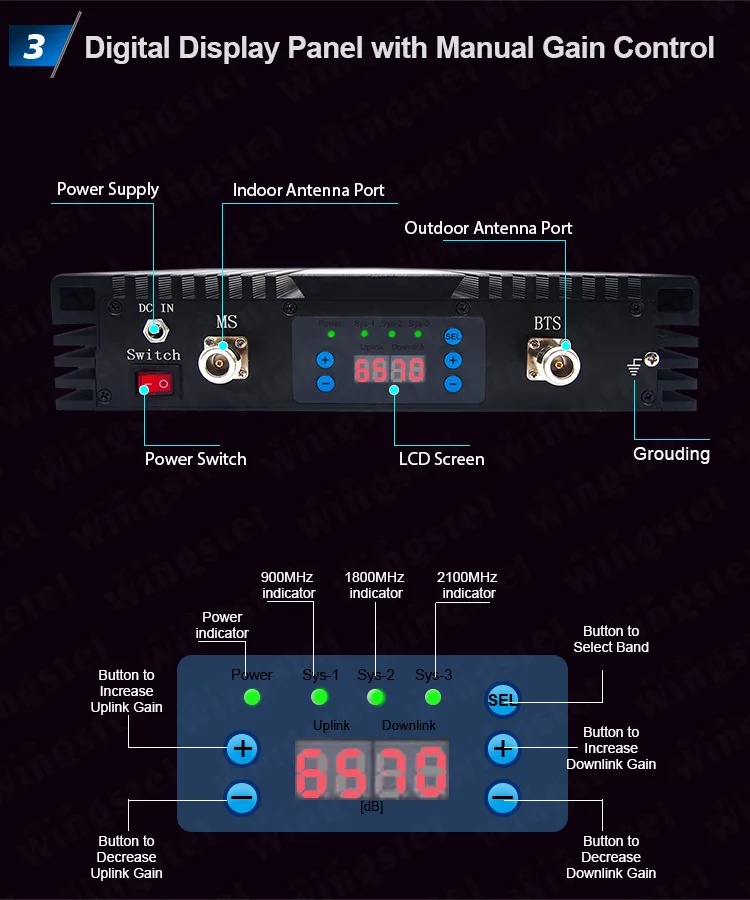

Manual Gain Control
|
31dB / 1dB Step
|
|||||||||
|

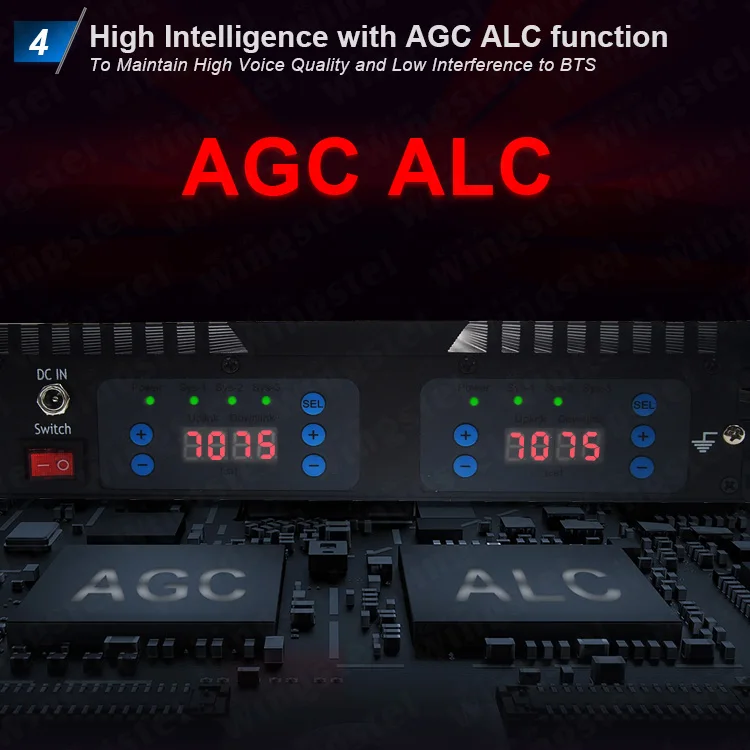

Automatic Gain Control
|
>30dB
|
|||||||||
|
Ripple in Band
|
8dB
|
|||||||||
|
Noise Figure
|
≤ 6dB
|
|||||||||
|
VSWR
|
≤ 2.0
|
|||||||||
|
Intermodulation Products
|
9KHz~1GHz
|
≤ -36dBm
|
||||||||
|
1~12.75GHz
|
≤ -30dBm
|
|||||||||
|
Spurious Emission
|
9KHz~1GHz
|
≤ -36dBm
|
||||||||
|
1~12.75GHz
|
≤ -30dBm
|
|||||||||
|
Time Delay
|
≤ 1.5 μs
|
|||||||||
|
Frequency stability
|
≤ 0.01ppm
|
|||||||||
|
MTBF
|
> 50000 hours
|
|||||||||
|
Impedance
|
50 ohm
|
|||||||||
|
Power Supply
|
AC 90-264V,DC 10V/6A
|
|||||||||
|

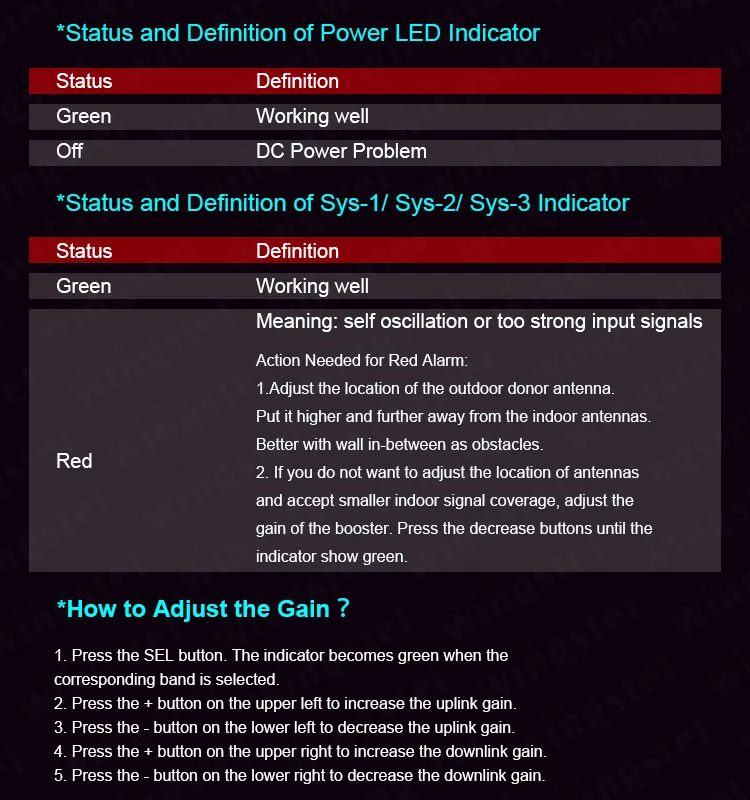

Power LED
|
Power indicator
|
|||||||||
|
Alarm LED
|
Red
|
Self oscillation or Strong input signal
|
||||||||
|
Green
|
Normal
|
|||||||||
|
Mechanical Specification
|
||||||||||
|
RF Connector
|
N-Female
|
|||||||||
|
Switch
|
Power Switch
|
|||||||||
|
Cooling
|
Heatsink Convection cooling
|
|||||||||
|
Humidity
|
< 90%
|
|||||||||
|
Operating Temperature
|
-10°C ~ +55°C
|
|||||||||
|
Environment Conditions
|
IP40
|
|||||||||
|
Installation Type
|
Wall Installation
|
|||||||||
|

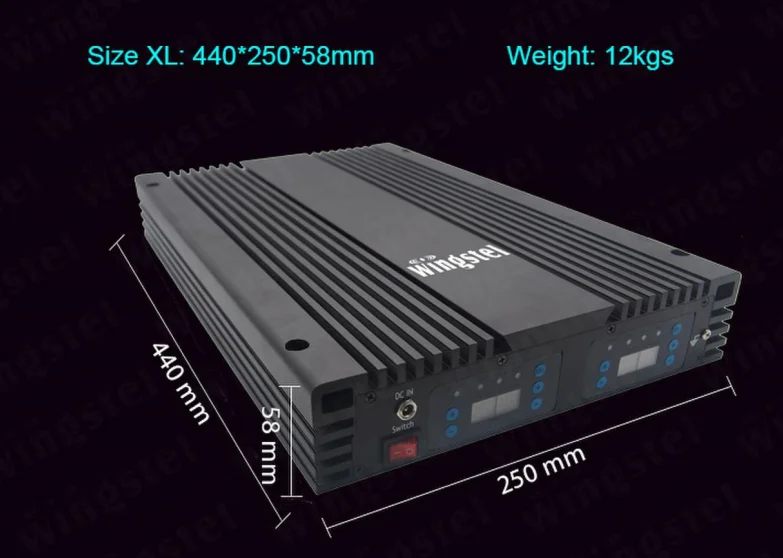

Size
|
440*250*58mm
|
|||||||||
|
Weight
|
About 12kgs
|
|||||||||
| DEFAULT | DEFAULT |
|---|
